WLAN Pi R4 BYOP kit
Bring Your Own Pi kit
$160.00
Out of stock
What is included
Panda Wireless PAU0F AXE3000 Wi-Fi 6E USB Adapter
Up angle / 90 degree USB adapter
Waveshare LCD display & buttons HAT (pre-threaded with Joystick cap shim)

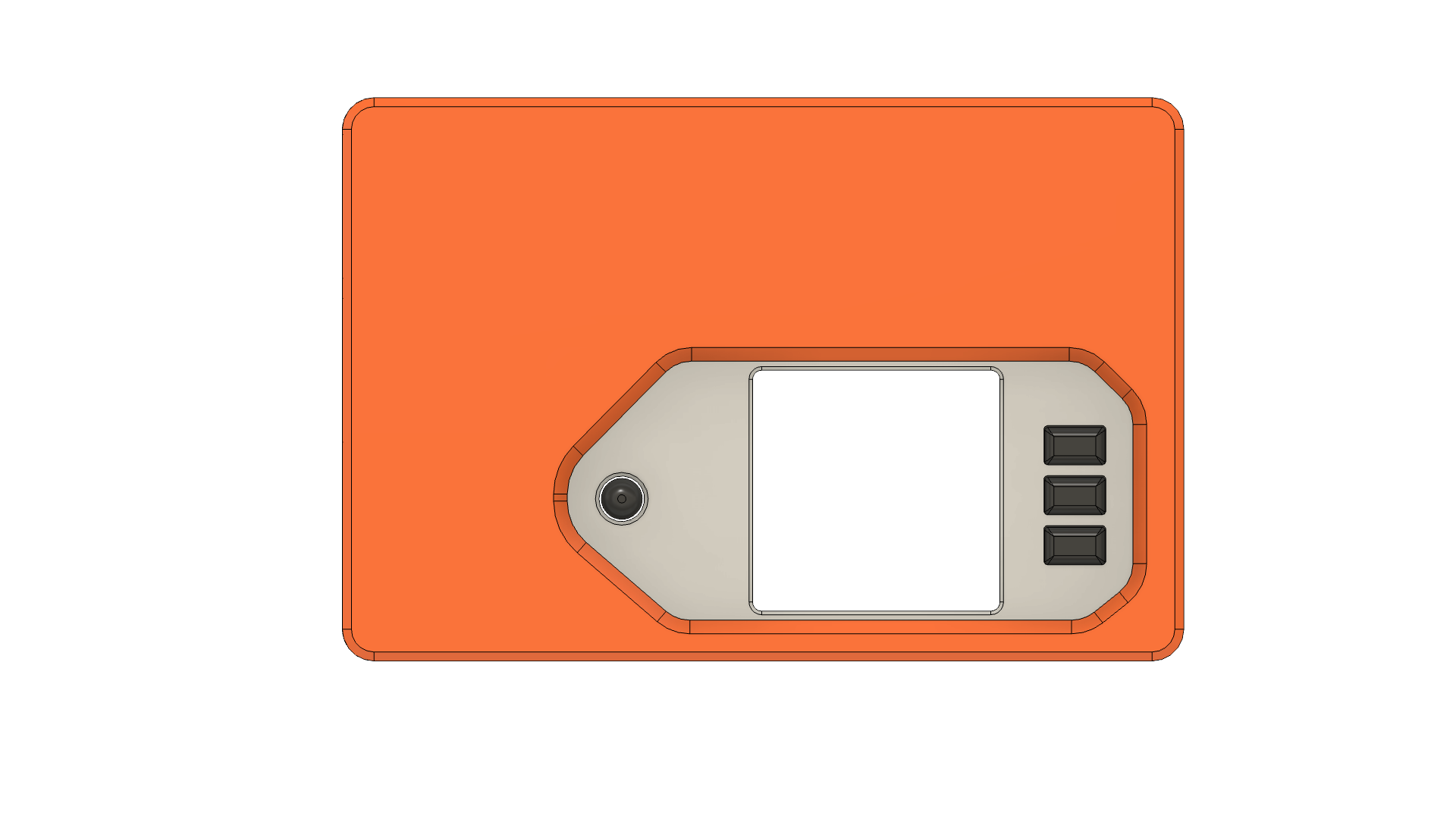

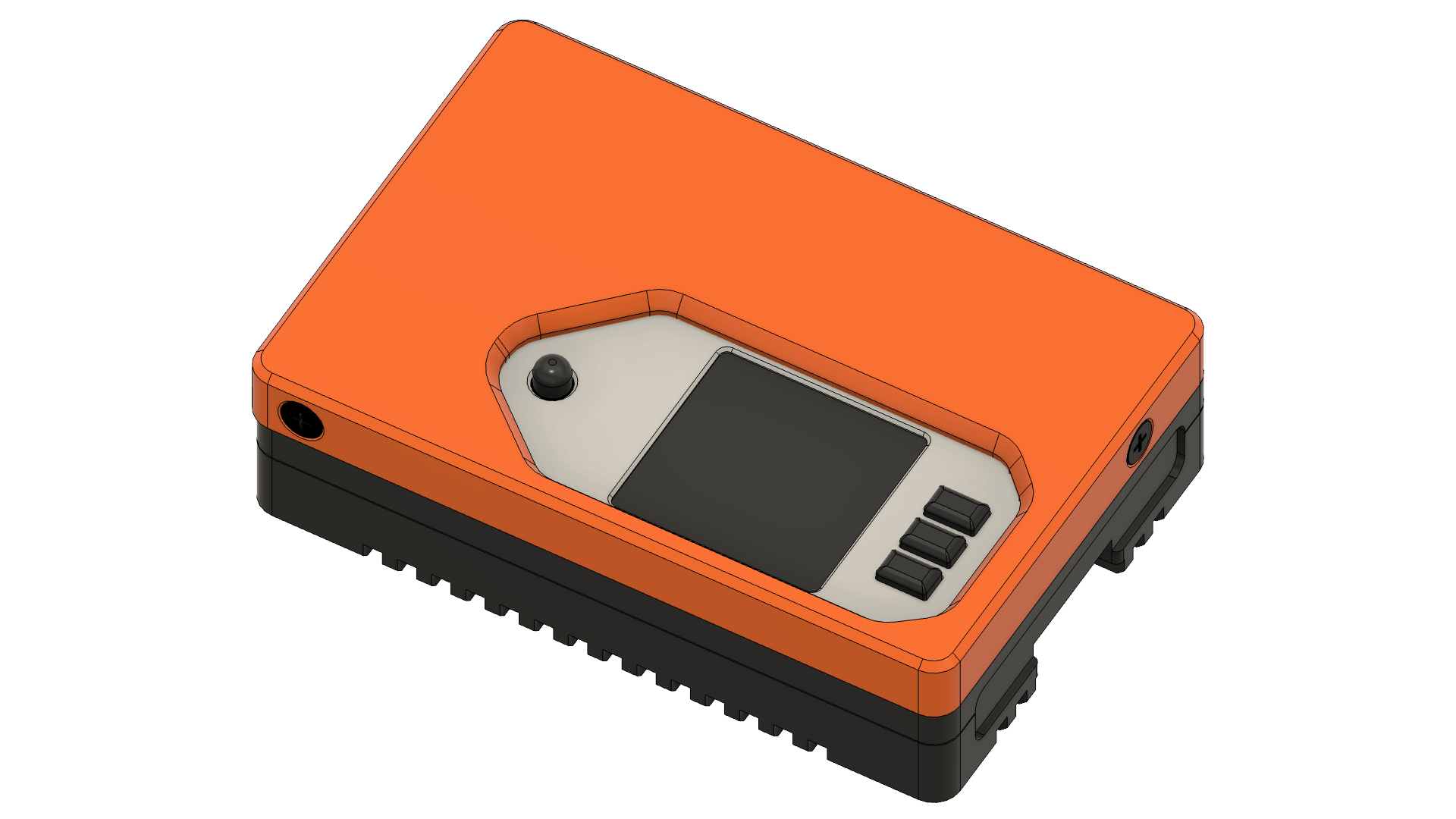

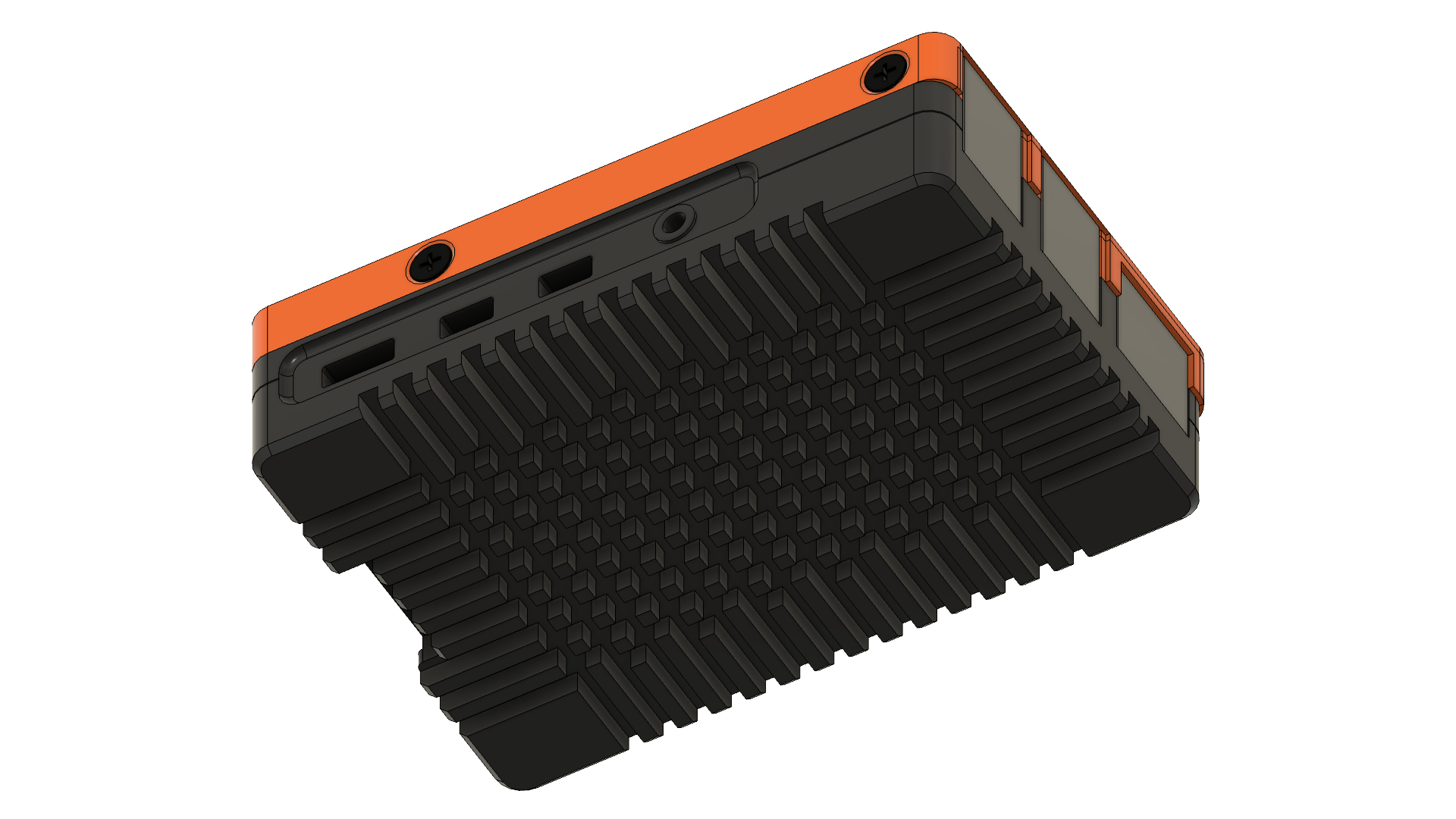

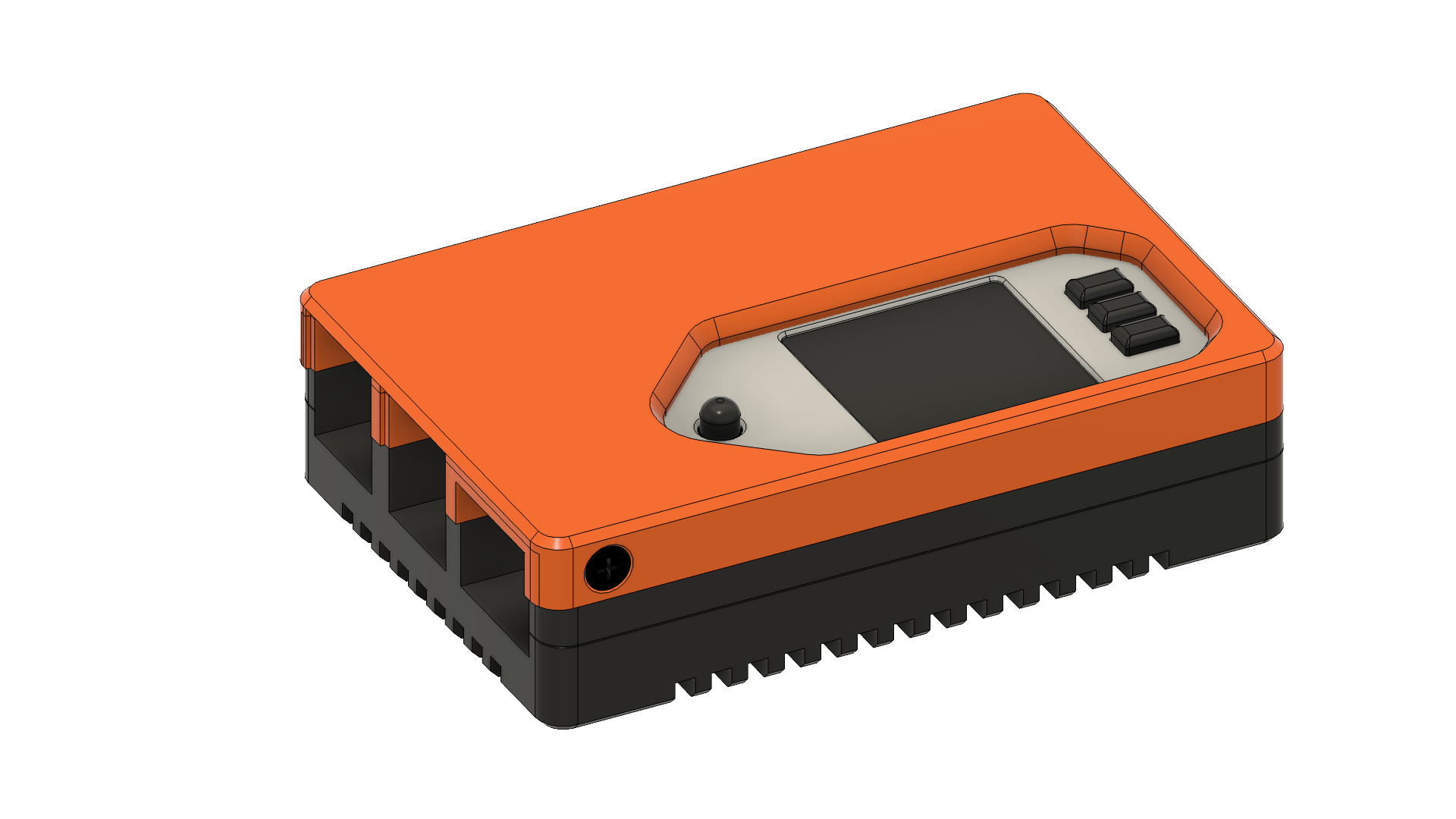

Waveshare Lightweight Aluminium Alloy Case
3D printed PETG
Fascia
Internal Support
Vanity Plate
Shim for Waveshare UI board
3D Printed Rubberized TPU
Button pads
Joystick cap (v2)
Three M2.5 mm countersunk machine screws
Four M3x4 mm countersunk machine screws (black)
What is not included
You will need to bring:
Raspberry Pi 4 Model B (Bring Your Own Pi)
2 GB RAM or more is recommended
microSD card
Power source
USB cable
Non-Features
To set clear expectations and help avoid any surprises, please take note of the following limitations:
No internal battery
No PoE hat
WLAN Pi is built by Wi-Fi professionals, for Wi-Fi professionals!
The current generation of WLAN Pi is based on the Raspberry Pi platform and runs WLAN Pi OS, a customized fork of Raspberry Pi OS tailored with opinionated features specifically for Wi-Fi engineers.
For a complete list of features, explore the WLAN Pi User Guide and WLAN Pi Cookbooks.
Please note: This kit includes all the components needed to assemble your own WLAN Pi R4, except for the Raspberry Pi 4 Model B, microSD card, and power. Assembly instructions.
Your purchase helps fund ongoing WLAN Pi software and hardware development. We donate a portion of corresponding sales back to the WLAN Pi project. Thank you for supporting open-source networking tools.
