WLAN Pi R4
$350.00
Out of stock
What is included
Raspberry Pi 4 Model B
Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5 GHz
4 GB RAM
Bluetooth 5.0, BLE (onboard)*
Gigabit Ethernet (10/100/1000 Mbps)
1x USB Type-C (OTG & Power)
2x USB Type-A 3.0 ports
2x USB Type-A 2.0 ports
microSD card slot
Power input: 5V DC via USB Type-C
Wireless NIC:

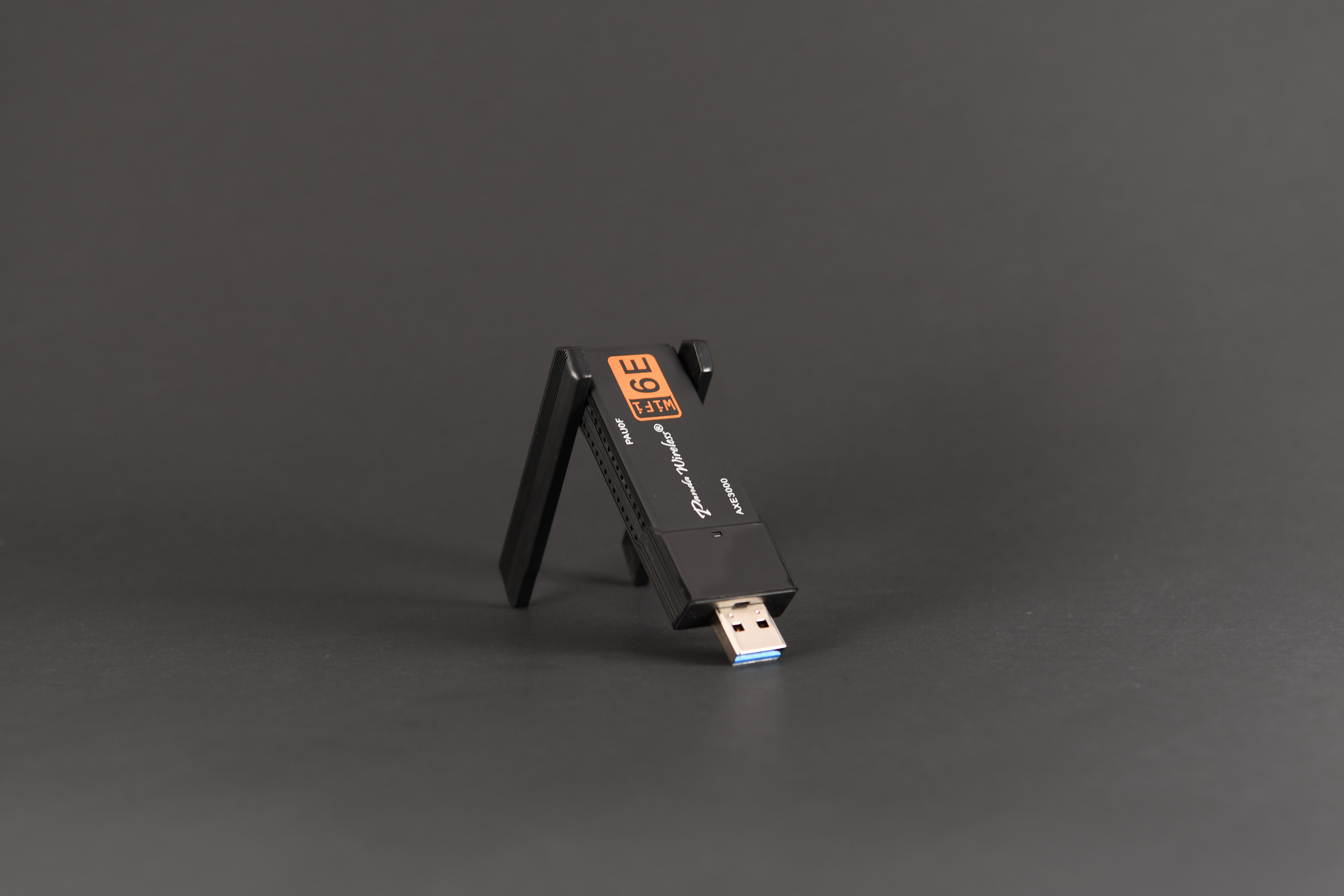

Panda Wireless PAU0F AXE3000 Wi-Fi 6E USB Adapter
Up angle / 90 degree USB adapter
Waveshare LCD display & buttons HAT
1.44” LCD display
1x joystick (5-position)
3x pushbuttons, configured as shortcuts
A - reachability / LLDP neighbour / eth0 IP info
B - hotspot mode trigger
C - shutdown / restart
64 GB microSD card pre-imaged with the latest version of WLAN Pi OS.
3D printed PETG components
Fascia
Case top
3D printed TPU components
Button pads
Joystick cap v2
4x M2.5 accessory mounting threads
What is Not included
Power Adapter
USB Cable
Non-Features
To set clear expectations and help avoid any surprises, please take note of the following limitations:
No internal battery
No PoE hat
* WLAN Pi OS disables these interfaces by default because they interfere with configuration settings within the OS. However, they can be re-enabled by making modifications to the boot configuration.
WLAN Pi is built by Wi-Fi professionals, for Wi-Fi professionals!
The current generation of WLAN Pi is based on the Raspberry Pi platform and runs WLAN Pi OS, a customized fork of Raspberry Pi OS tailored with opinionated features specifically for Wi-Fi engineers.
For a complete list of features, explore the WLAN Pi User Guide and WLAN Pi Cookbooks.

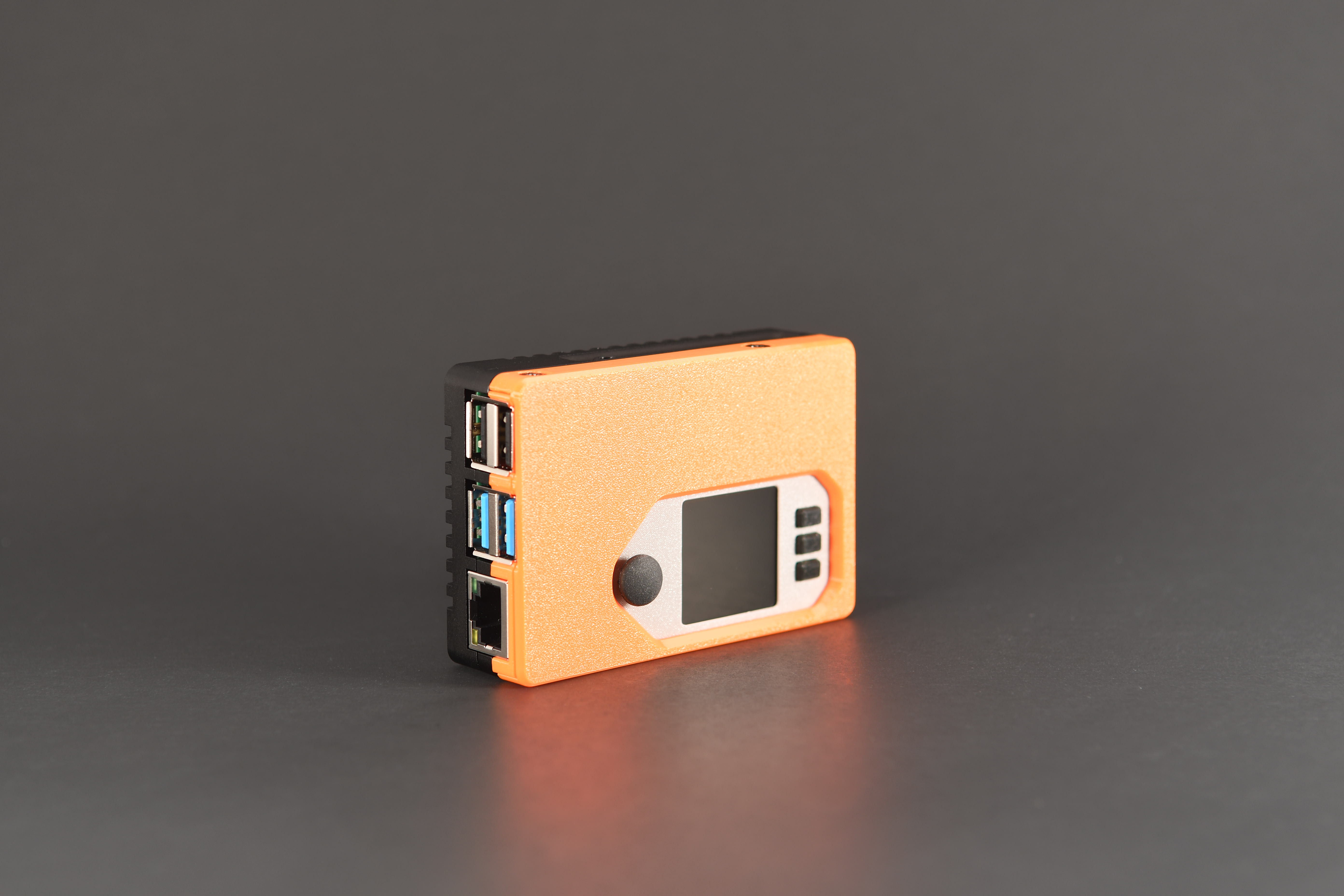

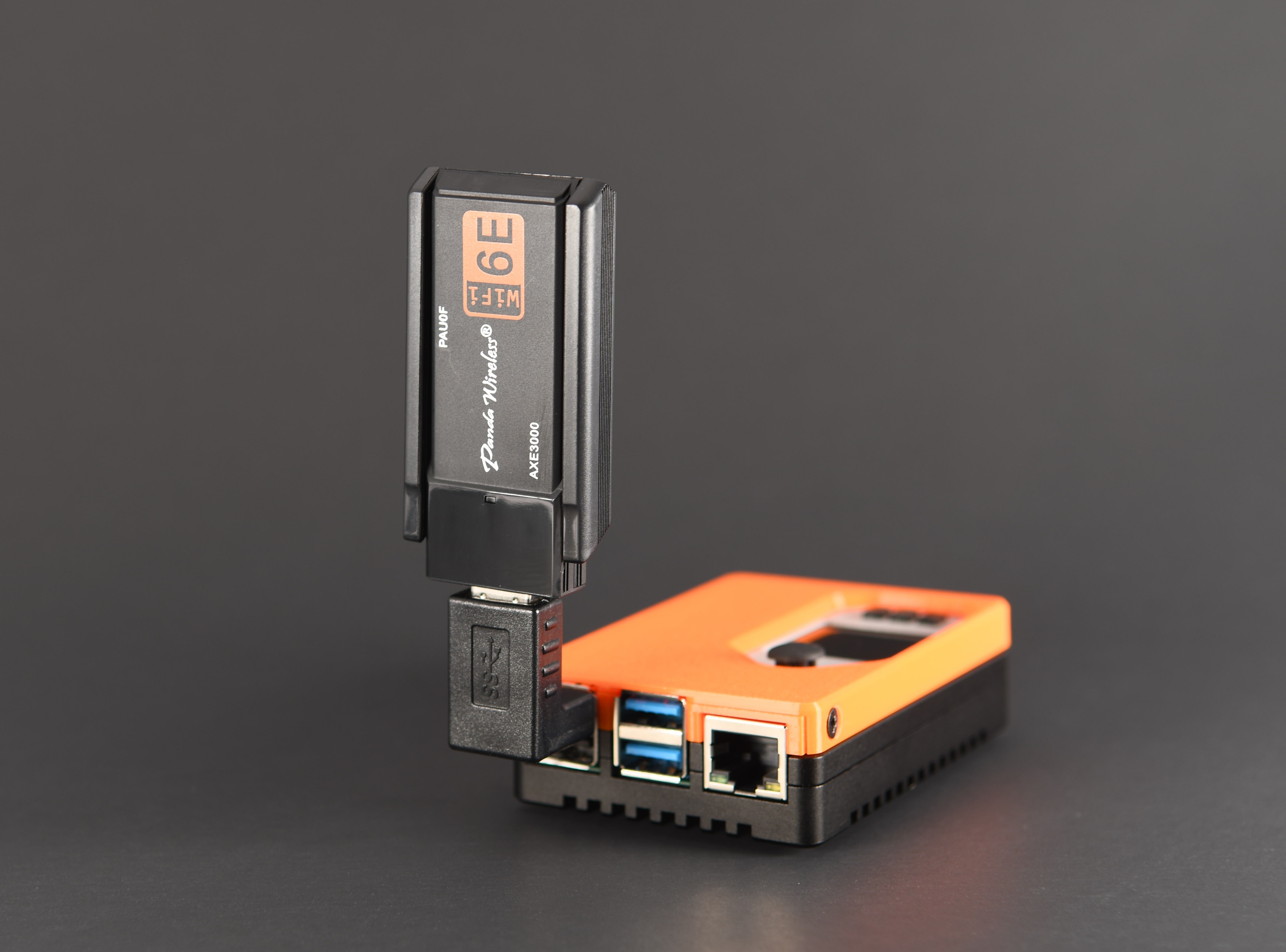

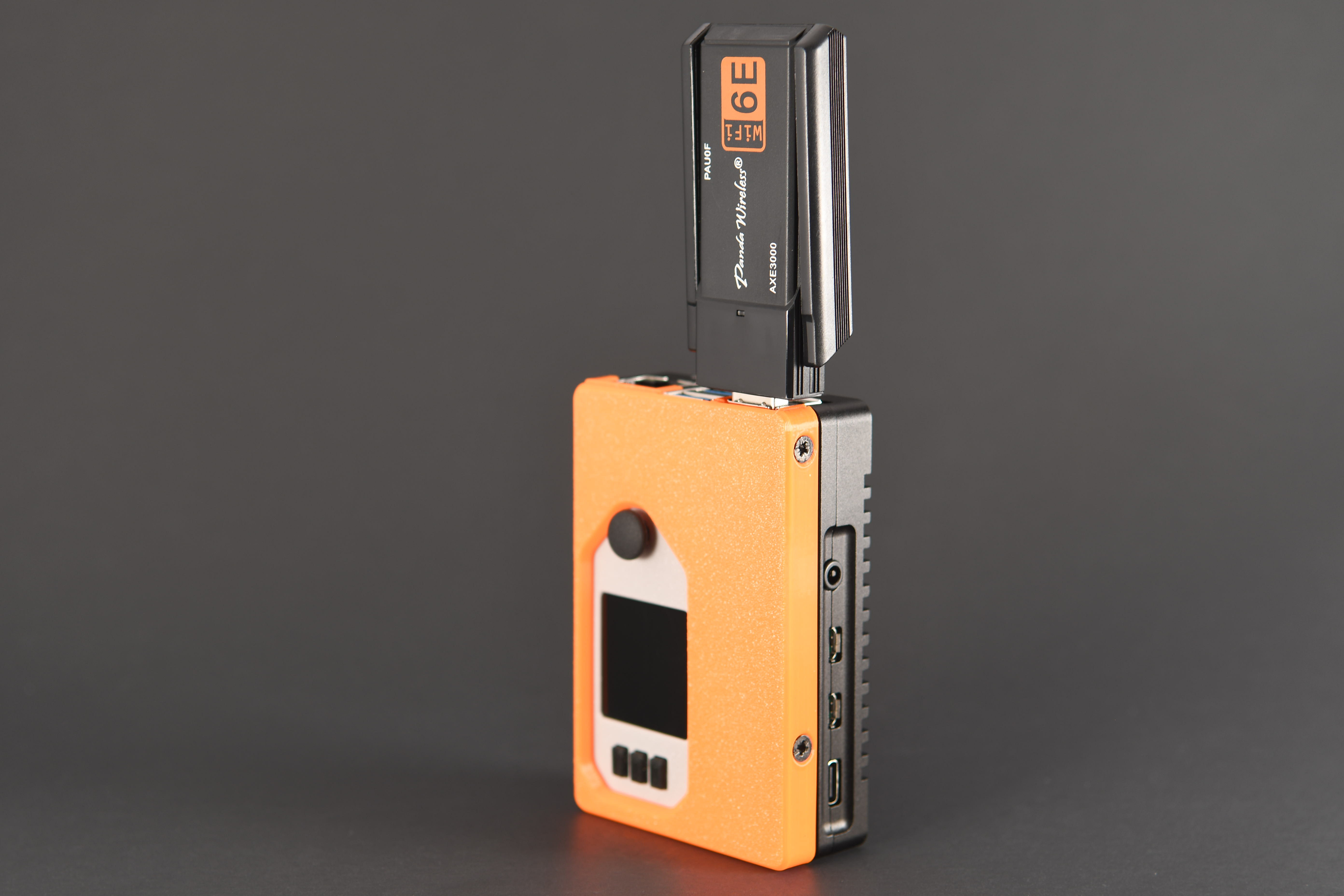

The WLAN Pi R4 is built on the foundation of the Raspberry Pi 4, encased in a durable Waveshare Lightweight Aluminum Alloy Heatsink case and complemented by a sleek, 3D-printed PETG fascia. Designed as a convenient, all-in-one Community Edition kit.
Your purchase helps fund ongoing WLAN Pi software and hardware development. We donate a portion of corresponding sales back to the WLAN Pi project. Thank you for supporting open-source networking tools.
