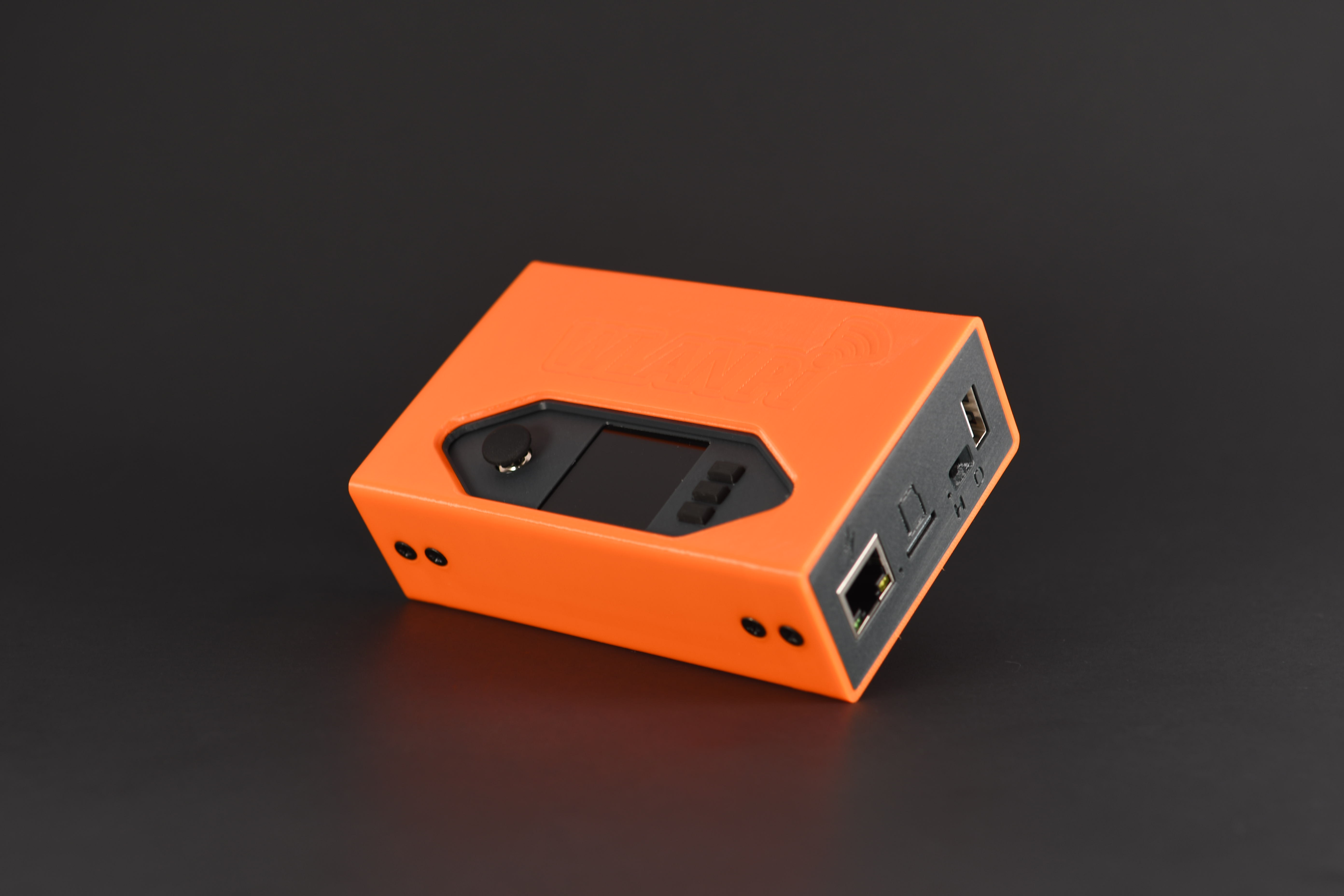

WLAN Pi M4+

This is a complete unit, fully assembled, ready to rock out of the box.

What is included

• Raspberry Pi CM4

  • Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5 GHz

  • 2 GB RAM

  • 802.11ac Wi-Fi*

  • Bluetooth 5.0 BLE*

• Mcuzone Wi-Fi 7 PoE Carrier Board**

  • M.2 slot populated with an Intel BE200 Wi-Fi 7 module

  • 2x internal tri-band antennas

  • 10/100/1000 Mbps Ethernet (PoE)

  • 1x USB Type-C

  • 3x USB Type-A 2.0 ports

  • microSD card slot

  • Power input

    • PoE 802.3af compliant

    • USB Type-C

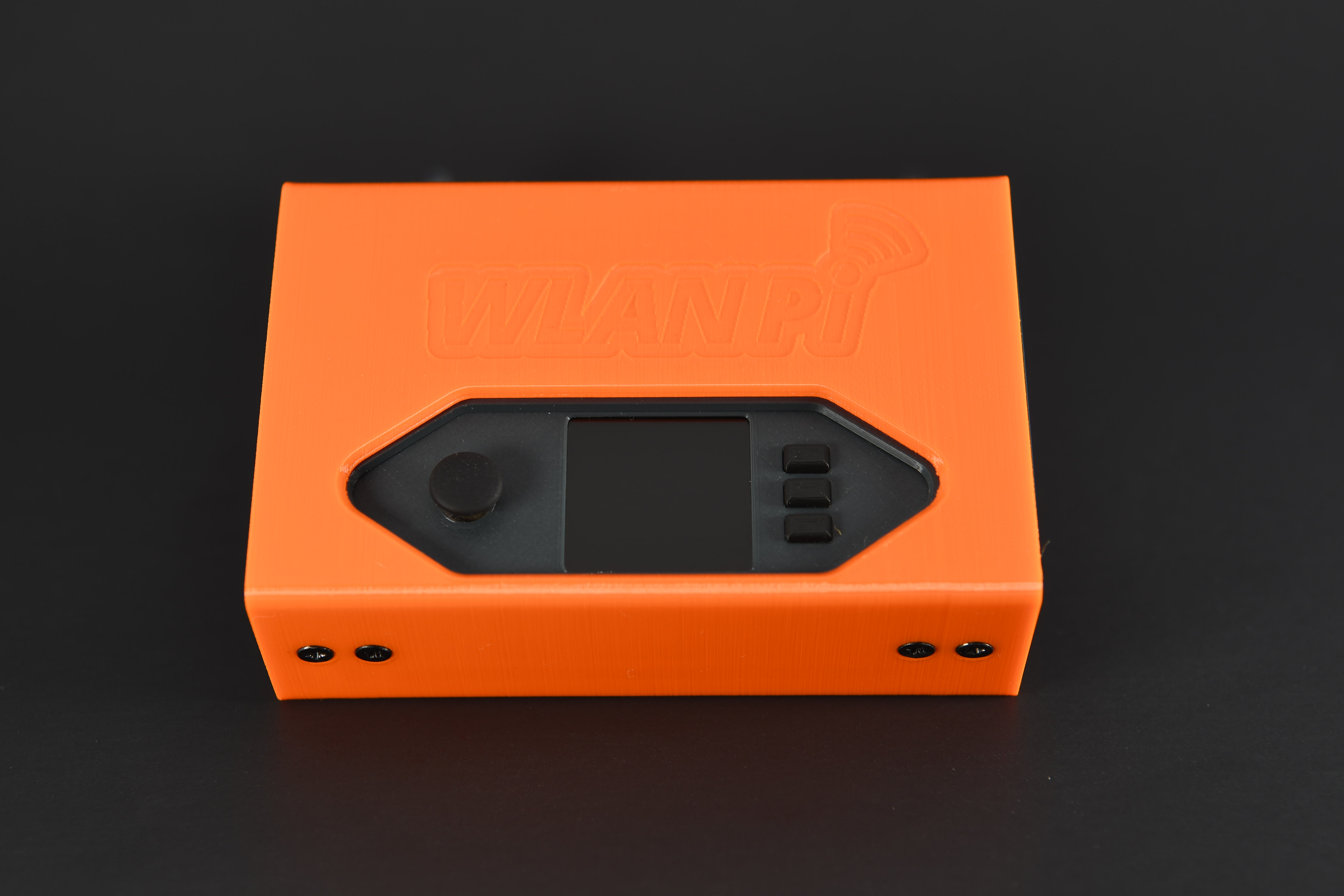

• Waveshare LCD display & buttons HAT

  • 1.44” LCD display

  • 1x joystick (5-position)

  • 3x pushbuttons, configured as shortcuts

    • A - reachability / LLDP neighbour / eth0 IP info

    • B - hotspot mode trigger

    • C - shutdown / restart

• 64 GB microSD card flashed with WLAN Pi OS

• 3D printed PETG case, components, and assembly

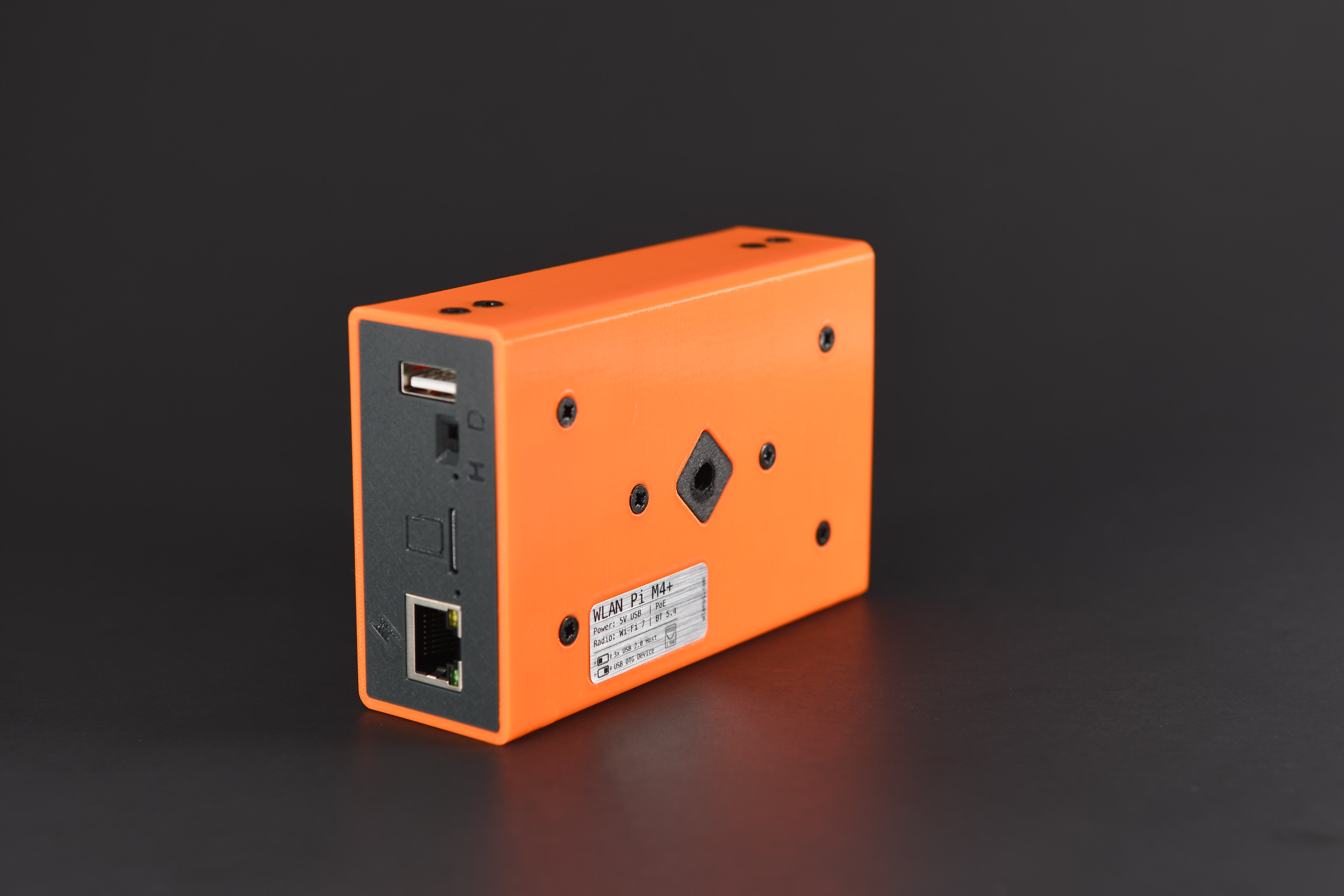

  • Integrated 1/4” thread (replaceable)

  • 8x M3 mounting threads (for accessories)

• OTG

  • USB Type-C port supports OTG

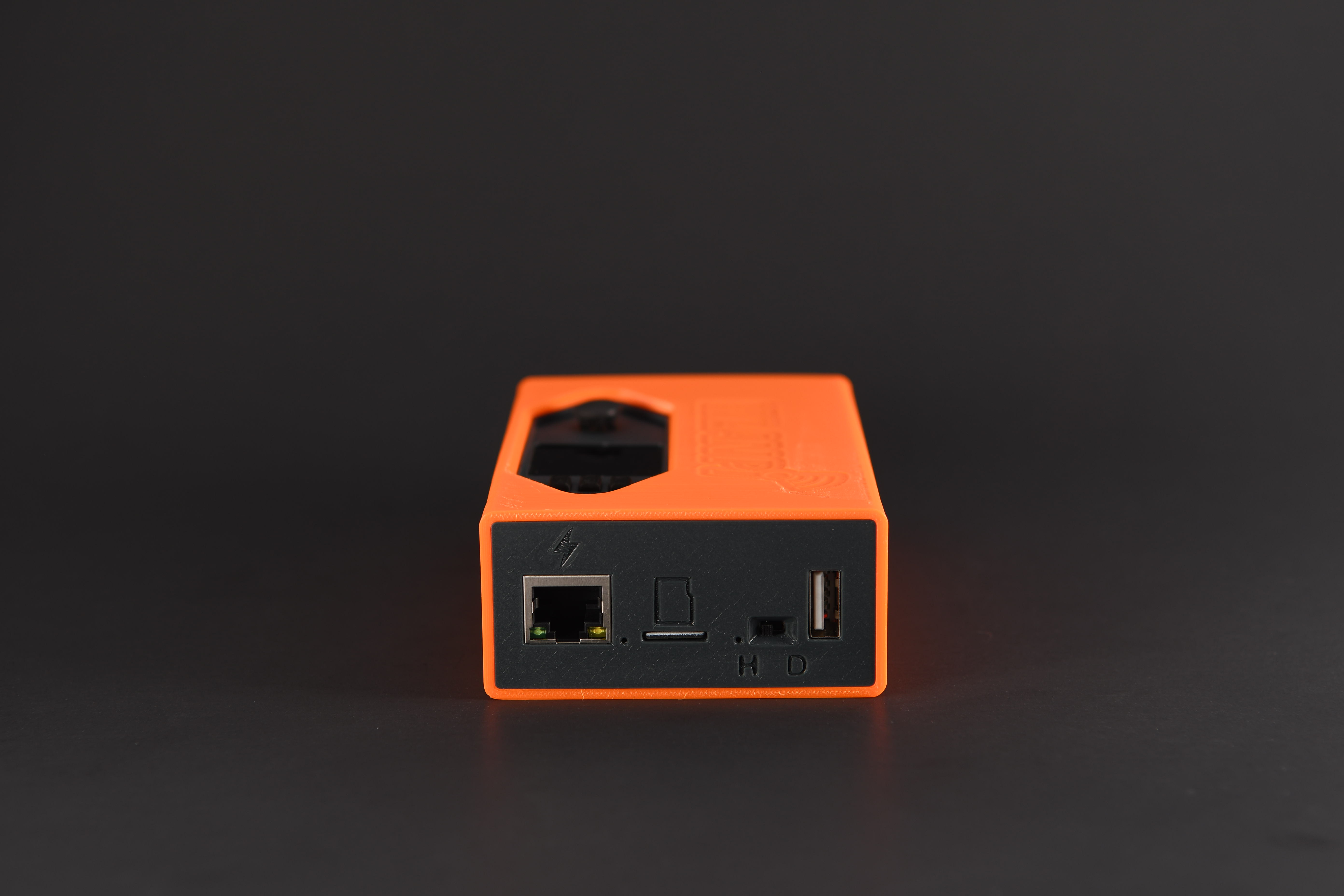

  • Physical toggle switch to select between:

    • Host mode - Type-C port delivers power only

    • Device mode - Type-C port carries power and data

What is Not Included

• Power Adapter

Highlighted Limitations

• 3x USB 2.0 ports (just to be clear the USB ports are not USB 3.0)

• OTG Device mode disables the USB-A ports and should not be used in conjunction with wired infrastructure

Non-Features

To set clear expectations and help avoid any surprises, please take note of the following limitations:

• No internal battery

* WLAN Pi OS disables these interfaces by default because they interfere with configuration settings within the OS. However, they can be re-enabled by making modifications to the boot configuration.

** The custom carrier board from Mcuzone (is slightly different from the standard Wi-Fi 7 carrier board), this board has a physical OTG toggle switch and upstream power protection.
