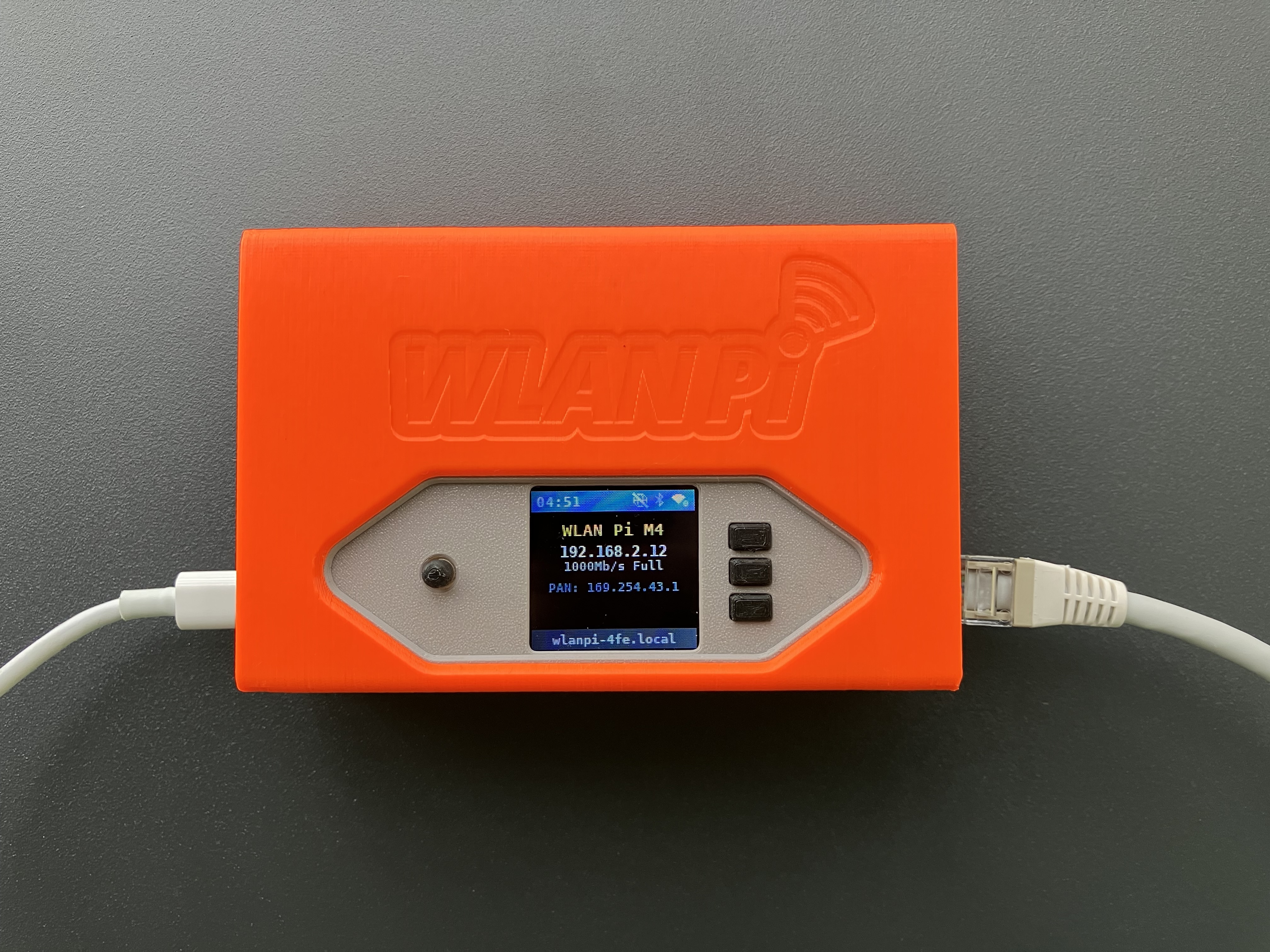

WLAN Pi M4
$400.00
Out of stock
This is a complete unit, fully assembled, ready to rock out of the box.
What is included
Raspberry Pi CM4
Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5 GHz
2 GB RAM
802.11ac Wi-Fi*
Bluetooth 5.0 BLE*
Mcuzone Wi-Fi 6 PoE Carrier Board
M.2 slot (A+E slot) populated with an Intel AX210 Wi-Fi 6E module
2x internal tri-band antennas
10/100/1000 Mbps Ethernet (PoE)
1x USB Type-C
3x USB Type-A 2.0 ports
microSD card slot
Power input
PoE 802.3af compliant
USB Type-C
Waveshare LCD display & buttons HAT
1.44” LCD display
1x joystick (5-position)
3x pushbuttons, configured as shortcuts
A - reachability / LLDP neighbour / eth0 IP info
B - hotspot mode trigger
C - shutdown / restart
64 GB microSD card flashed with WLAN Pi OS
3D printed PETG case, components, and assembly
Integrated 1/4” thread (replaceable)
8x M3 mounting threads (for accessories)
What is Not Included
Power Adapter
Highlighted Limitations
3x USB 2.0 ports (just to be clear the USB ports are not USB 3.0)
Non-Features
To set clear expectations and help avoid any surprises, please take note of the following limitations:
No internal battery
No Wi-Fi 7 (would require installing https://bigqam.com/wlan-pi-m2-atoe-key-adapter and an Intel BE200)
No OTG or back power protection
* WLAN Pi OS disables these interfaces by default because they interfere with configuration settings within the OS. However, they can be re-enabled by making modifications to the boot configuration.
WLAN Pi is built by Wi-Fi professionals, for Wi-Fi professionals!
The current generation of WLAN Pi is based on the Raspberry Pi platform and runs WLAN Pi OS, a customized fork of Raspberry Pi OS tailored with opinionated features specifically for Wi-Fi engineers.
For a complete list of features, explore the WLAN Pi User Guide and WLAN Pi Cookbooks.
The WLAN Pi M4 is powered by the Raspberry Pi Compute Module 4 (CM4), hosted on an Mcuzone carrier board. It features an M.2 (A+E key) Wi-Fi 6E module and internal tri-band antennas, all enclosed in a sleek, 3D-printed PETG case.
Your purchase helps fund ongoing WLAN Pi software and hardware development. We donate a portion of corresponding sales back to the WLAN Pi project. Thank you for supporting open-source networking tools.
